Author: Kashish Satija

For my final project, I created a hybrid digital-physical escape room-style game inspired by timed bomb defusal sequences in video games. The entire experience blends physical interactivity through Arduino with dynamic visuals and logic in p5.js. The result is a tense, fast-paced game where players must race against the clock to complete four distinct challenges and successfully input a final disarm code before the device “explodes.”

The core idea was to simulate a bomb defusal setup using varied mini-games—each one testing a different skill: speed, logic, memory, and pattern recognition.

How the Game Works

The digital game runs in p5.js and connects to a single Arduino board that handles inputs from physical buttons, rotary encoders, and switches. Players are given 80 seconds to complete four escalating stages:

1. Button Mash Challenge – Tap a physical button repeatedly until a counter hits the target.

2. Math Riddle Quiz – Use a button to select answers and confirm; one wrong answer ends the game.

3. Note Match – Listen to a played note and match it using one of four physical options.

4. Morse Code Challenge – Decode a flashing Morse signal and reproduce it using a button.

After all four stages, the player must recall and enter a 4-digit code, derived from the hidden logic behind each stage. If they enter it correctly, the bomb is defused and a green screen confirms success. Otherwise—boom. Game over.

A countdown timer runs persistently, and sound effects, animations, and images change based on player progress, creating an immersive narrative.

Video Demo:  https://drive.google.com/drive/folders/1xghtShbdS5ApygD3-LrT41DRQsbnQ98U?usp=share_link

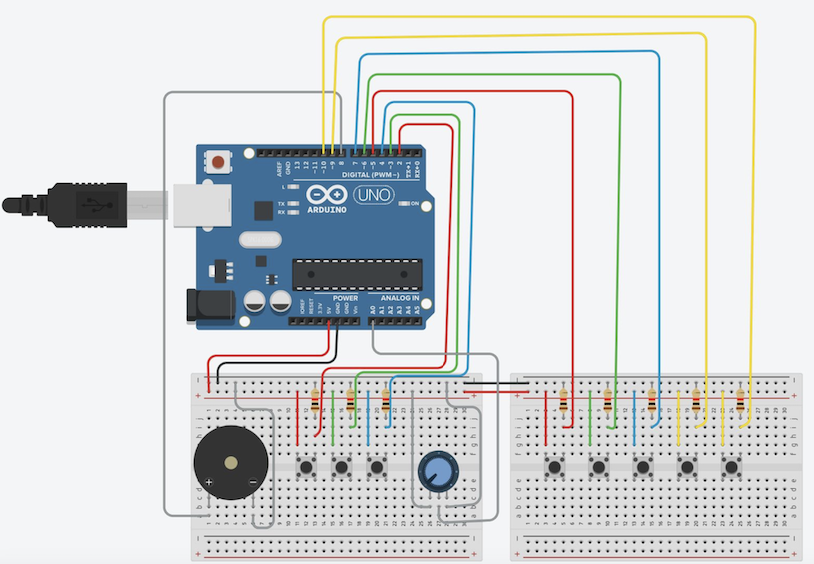

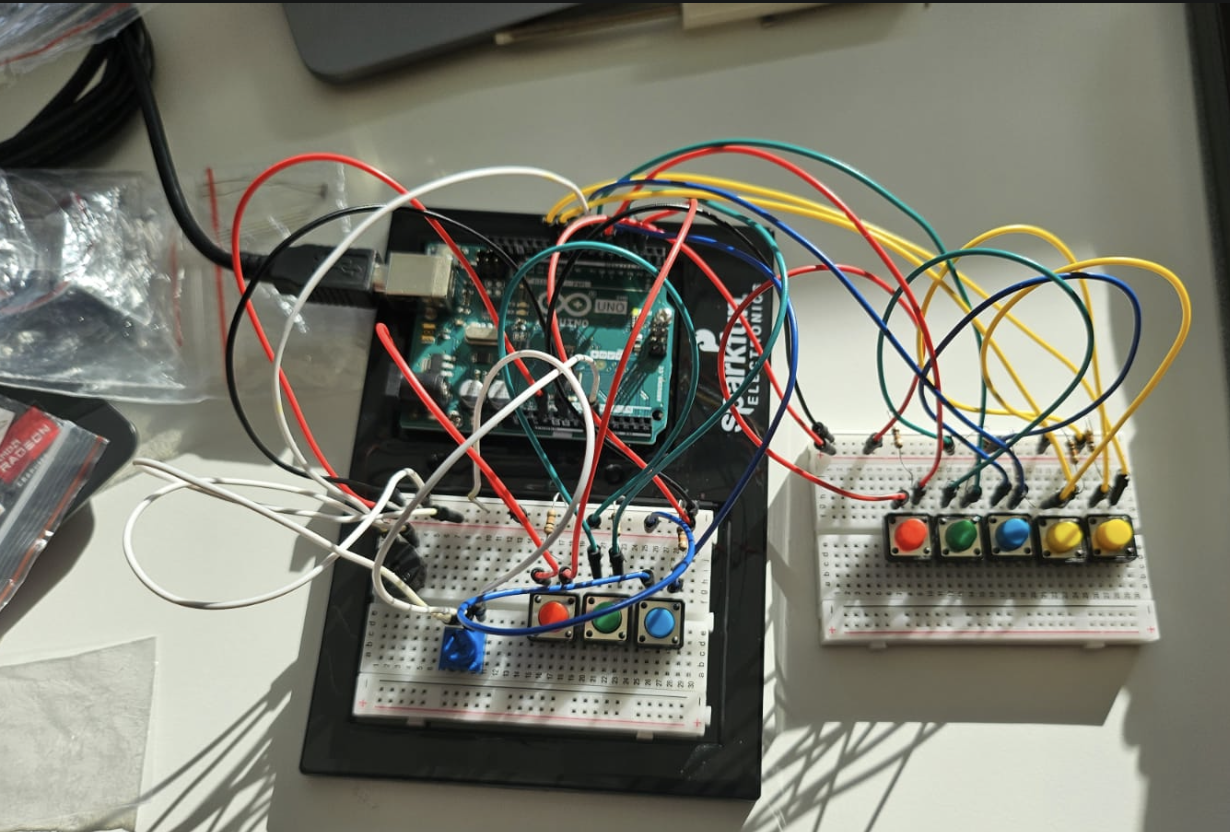

Hardware & Physical Build

This game relies heavily on Arduino to provide tactile interaction. Here’s how each component contributes:

• Button Mash: A simple digital input wired to a button switch.

• Math Quiz: A designated button allows users to scroll through numeric answers, with a button to lock in their choice.

• Note Match: A speaker plays a pitch generated from Arduino, and players must select the correct note using four distinct buttons.

• Morse Code: The p5 screen shows a pattern, which the player must replicate with button presses (dots and dashes).

To enhance the look, I created screen graphics for each stage and embedded them as assets into the p5.js sketch. I also used audio cues (success/failure sounds) to give it more feedback.

Code + Serial Integration

The p5.js sketch acts as the game engine and controller, managing state transitions, timing, visuals, and logic. Arduino handles all the physical input and sends data to p5.js over serial using a consistent message format.

Initially, I experimented with sending raw characters for stage signals and player responses, but ran into reliability issues. Eventually, I switched to using numeric values and simple prefixes which made parsing much more predictable.

There’s a small but critical serial timing issue to manage — making sure Arduino doesn’t flood the buffer, and that p5 reads and trims data consistently. I handled this using readUntil("\n").trim() on the p5 side and line breaks on the Arduino side.

I also implemented a game reset trigger — pressing “R” after the game ends resets both the p5 and Arduino states and lets the player start over without refreshing the browser.

Arduino Code:

// initialize connections
const int BUTTON_PINS[] = {2, 3, 4, 5};
const int BUZZER_PIN = 8;
const int CONFIRM_PIN = 7;
const int POT_PIN = A0;
const int RED_LED_PIN_1 = 9;
const int YELLOW_LED_PIN_1 = 10;
const int GREEN_LED_PIN_1 = 12;
const int RED_LED_PIN_2 = 13;
const int YELLOW_LED_PIN_2 = 11;
const int GREEN_LED_PIN_2 = 6;

// initialize all game variables
int currentPressed = -1;
int targetNote = -1;
bool newRound = true;
bool morsePressed = false;
unsigned long morseStart = 0;
int buttonMashCount = 0;
int currentGame = 0;

bool bombDefused = false;
bool bombExploded = false;
bool gameEnded = false;

unsigned long gameStartTime;
const unsigned long GAME_DURATION = 80000;

bool inCountdown = false;
unsigned long lastBeepTime = 0;
unsigned long beepInterval = 1000;

int blinkState = 0;
unsigned long lastBlinkTime = 0;
unsigned long blinkInterval = 400;
bool ledOn = false;

void setup() {
  Serial.begin(9600);
  while (!Serial);
  // setup and initialize all physical connections
  for (int i = 0; i < 4; i++) pinMode(BUTTON_PINS[i], INPUT_PULLUP);
  pinMode(BUZZER_PIN, OUTPUT);
  pinMode(CONFIRM_PIN, INPUT_PULLUP);
  pinMode(POT_PIN, INPUT);
  pinMode(RED_LED_PIN_1, OUTPUT);
  pinMode(YELLOW_LED_PIN_1, OUTPUT);
  pinMode(GREEN_LED_PIN_1, OUTPUT);
  pinMode(RED_LED_PIN_2, OUTPUT);
  pinMode(YELLOW_LED_PIN_2, OUTPUT);
  pinMode(GREEN_LED_PIN_2, OUTPUT);

  randomSeed(analogRead(A1));
  gameStartTime = millis();
}

void loop() {
  if (Serial.available()) {
    String input = Serial.readStringUntil('\n');
    input.trim();

    if (input == "RESET") {
      resetGame(); // reset game variables when reset command is received
      return;
    }
    // to identify target note sent by arduino
    if (input.startsWith("NOTE:")) {
      targetNote = input.substring(5).toInt();  // parses 6th character which holds numeric value
      newRound = true;
      return;
    }
    // if bomb is defused on p5, it sends input to arduino and bomb is defused here as well
    if (input == "DEFUSED"){
      bombDefused= true;
      gameEnded = true;
      return;
    }
    // in case user makes a mistake in games, p5 sends exploded to arduino
    if (input == "EXPLODED") {
      bombExploded = true;
      gameEnded = true;
      Serial.println("EXPLOSION_ACK");
      return;
    }
    // to parse game sent to arduino each time a challenge is completed and we move to next one
    currentGame = input.toInt();

    if (currentGame == 0) buttonMashCount = 0;
    if (currentGame == 2) newRound = true;
  }
  // when bomb is defused or explodes
  if (gameEnded) {
    noTone(BUZZER_PIN);
    return;
  }
  // turn of all leds
  if (bombExploded || bombDefused) {
    digitalWrite(RED_LED_PIN_1, LOW);
    digitalWrite(YELLOW_LED_PIN_1, LOW);
    digitalWrite(GREEN_LED_PIN_1, LOW);
    digitalWrite(RED_LED_PIN_2, LOW);
    digitalWrite(YELLOW_LED_PIN_2, LOW);
    digitalWrite(GREEN_LED_PIN_2, LOW);

    noTone(BUZZER_PIN);
  }

  unsigned long elapsed = millis() - gameStartTime;
  // handles blinking of leds alternatively until 30 seconds are left
  unsigned long remaining = GAME_DURATION - elapsed;
  if (!gameEnded && !bombDefused) {
  if (remaining > 30000) {
    if (millis() - lastBlinkTime >= 400) {
      lastBlinkTime = millis();
      ledOn = !ledOn;

      digitalWrite(RED_LED_PIN_1, LOW);
      digitalWrite(YELLOW_LED_PIN_1, LOW);
      digitalWrite(GREEN_LED_PIN_1, LOW);
      digitalWrite(RED_LED_PIN_2, LOW);
      digitalWrite(YELLOW_LED_PIN_2, LOW);
      digitalWrite(GREEN_LED_PIN_2, LOW);


      if (ledOn) {
        if (blinkState == 0) {
          digitalWrite(GREEN_LED_PIN_1, HIGH);
          digitalWrite(GREEN_LED_PIN_2, HIGH);}
        else if (blinkState == 1) {
          digitalWrite(YELLOW_LED_PIN_1, HIGH);
          digitalWrite(YELLOW_LED_PIN_2, HIGH);}
        else if (blinkState == 2) {
          digitalWrite(RED_LED_PIN_1, HIGH);
          digitalWrite(RED_LED_PIN_2, HIGH);}

        blinkState = (blinkState + 1) % 3;
      }
    }
  }
  // last 30 seconds yellow starts blibking with beeps
  else if (remaining > 13000) {
    if (millis() - lastBlinkTime >= 500) {
      lastBlinkTime = millis();
      ledOn = !ledOn;

      //ensure other LEDs are off
      digitalWrite(RED_LED_PIN_1, LOW);
      digitalWrite(RED_LED_PIN_2, LOW);
      digitalWrite(GREEN_LED_PIN_1, LOW);
      digitalWrite(GREEN_LED_PIN_2, LOW);

      // Yellow blinking
      digitalWrite(YELLOW_LED_PIN_1, ledOn ? HIGH : LOW);
      digitalWrite(YELLOW_LED_PIN_2, ledOn ? HIGH : LOW);
    }
    // beeps
    if (millis() - lastBeepTime >= 1000) {
      lastBeepTime = millis();
      tone(BUZZER_PIN, 1000, 100);
    }
  }
  // last 10 seconds red is blinking with faster beeps
  else if (remaining > 3000) {
    if (millis() - lastBlinkTime >= 300) {
      lastBlinkTime = millis();
      ledOn = !ledOn;
      digitalWrite(RED_LED_PIN_1, ledOn ? HIGH : LOW);
      digitalWrite(RED_LED_PIN_2, ledOn ? HIGH : LOW);
    }

    if (millis() - lastBeepTime >= 500) {
      lastBeepTime = millis();
      tone(BUZZER_PIN, 1200, 100);
    }
  }
}
  // bomb exploded cause time is up
  if (elapsed >= GAME_DURATION && !bombDefused) {
    bombExploded = true;
    gameEnded = true;
    Serial.println("EXPLODED");
    return;
  }
  // Serial input


  switch (currentGame) {
    case 0: handleButtonMash(); break;
    case 1: handleMathQuiz(); break;
    case 2: handleNoteMatch(); break;
    case 3: handleMorseCode(); break;
  }
}
// to handle physicak input for each game
void handleButtonMash() {
  static unsigned long lastPressTime = 0;
  static bool lastButtonState = HIGH;
  bool currentState = digitalRead(CONFIRM_PIN);
  // each press sends 1 to p5, which increments counter for current presses
  if (lastButtonState == HIGH && currentState == LOW && millis() - lastPressTime > 200) {
    buttonMashCount++;
    lastPressTime = millis();
    Serial.println("1");
  }
  lastButtonState = currentState;
}
// resetGame function defined to reset all game variables and start game again
void resetGame() {
  bombDefused = false;
  bombExploded = false;
  gameEnded = false;
  buttonMashCount = 0;
  currentPressed = -1;
  currentGame = 0;
  newRound = true;
  morsePressed = false;
  targetNote = -1;
  morseStart = 0;
  gameStartTime = millis();
  ledOn = false;
  blinkState = 0;
  lastBlinkTime = 0;
  lastBeepTime = 0;

  // turn off all LEDs and buzzer
  digitalWrite(RED_LED_PIN_1, LOW);
  digitalWrite(YELLOW_LED_PIN_1, LOW);
  digitalWrite(GREEN_LED_PIN_1, LOW);
  digitalWrite(RED_LED_PIN_2, LOW);
  digitalWrite(YELLOW_LED_PIN_2, LOW);
  digitalWrite(GREEN_LED_PIN_2, LOW);
  noTone(BUZZER_PIN);
}

void handleMathQuiz() {
  static int selectedNum = 0;
  static int lastButtonState = HIGH;
  static unsigned long lastDebounceTime = 0;
  const unsigned long debounceDelay = 200;

  int currentState = digitalRead(BUTTON_PINS[0]); // increment button on pin 2

  // handle incrementing selected number
  if (lastButtonState == HIGH && currentState == LOW && (millis() - lastDebounceTime > debounceDelay)) {
    selectedNum = (selectedNum + 1) % 10;
    Serial.print("SELECT:");
    Serial.println(selectedNum);
    lastDebounceTime = millis();
  }
  lastButtonState = currentState;

  // handle confirmation
  if (digitalRead(CONFIRM_PIN) == LOW) {
    delay(50);
    // sends selected number to arduino when confirm button is pressed
    if (digitalRead(CONFIRM_PIN) == LOW) {
      Serial.print("PRESS:");
      Serial.println(selectedNum);
      delay(300);
    }
  }
}

void handleNoteMatch() {
  static unsigned long toneEndTime = 0;
  static bool isPlayingTarget = false;

  // handle new round target note
  if (newRound) {
    noTone(BUZZER_PIN);
    delay(5);
    digitalWrite(BUZZER_PIN, LOW);
    // plays target note sent by p5
    tone(BUZZER_PIN, getPitch(targetNote), 500);
    toneEndTime = millis() + 500;
    isPlayingTarget = true;
    newRound = false;
    return;
  }

  // handle tone playing completion
  if (isPlayingTarget && millis() > toneEndTime) {
    noTone(BUZZER_PIN);
    isPlayingTarget = false;
  }

  // playing note corresponding to button presses
  if (!isPlayingTarget) {
    bool anyPressed = false;
    for (int i = 0; i < 4; i++) {
      if (digitalRead(BUTTON_PINS[i]) == LOW) {
        anyPressed = true;
        if (currentPressed != i) {
          noTone(BUZZER_PIN);
          delay(5);
          currentPressed = i;
          tone(BUZZER_PIN, getPitch(i));
          Serial.println(i);
        }
        break;
      }
    }
    // no note should play when button is not pressed
    if (!anyPressed && currentPressed != -1) {
      noTone(BUZZER_PIN);
      currentPressed = -1;
    }
    // send final answer confirmation when button is pressed
    if (digitalRead(CONFIRM_PIN) == LOW) {
      noTone(BUZZER_PIN);
      Serial.println("CONFIRM");
      delay(300);
      newRound = true;
    }
  }
}

void handleMorseCode() {
  static unsigned long lastDebounceTime = 0;
  const unsigned long debounceDelay = 50; // ms

  int btn = digitalRead(BUTTON_PINS[0]);  // button on pin 2 is used for sending data

  // Button press detection with debouncing
  if (btn == LOW && !morsePressed && (millis() - lastDebounceTime) > debounceDelay) {
    morseStart = millis();
    morsePressed = true;
    lastDebounceTime = millis();
  }

  // Button release detection
  if (btn == HIGH && morsePressed) {
    unsigned long duration = millis() - morseStart;
    morsePressed = false;

    // short press sends . and long press sends -
    if (duration >= 20) {
      Serial.println(duration < 500 ? "." : "-");
    }
    lastDebounceTime = millis();
    delay(100);
  }

  // pressing confirm button sends confirm to p5 which then checks if string formed by user matches morse code proivded
  if (digitalRead(CONFIRM_PIN) == LOW) {
    delay(50); // Debounce
    if (digitalRead(CONFIRM_PIN) == LOW) {
      Serial.println("CONFIRM");
      while(digitalRead(CONFIRM_PIN) == LOW);
      delay(300);
    }
  }
}
// 4 notes chosen for note match
int getPitch(int index) {
  int pitches[] = {262, 294, 330, 349};
  return pitches[index];
}

p5js code:

let port;
let connectBtn;
let startBtn;
let baudrate = 9600;

// initiate all flags required
let showWelcome = true;
let showInstructions = false;
let gameStarted = false;
let currentGame = 0;
let gameCompleted = [false, false, false, false];
let codeDigits = [];
let userCodeInput = "";
let correctCode = "";
let bombDefused = false;
let bombExploded = false;
let stageCompleted = false;
let stageCompleteTime = 0;
let stageDigit = -1;
let imgWelcome, imgInstructions, imgButtonSmash, buttonMashSuccessImg, mathQuizSuccessImg, noteMatchSuccessImg, morseCodeSuccessImg, imgMathRiddle, imgNoteMatch, imgMorseCode1,imgMorseCode2, imgBombDefused, imgBombExploded,imgCodeEntry;
let bombSound;
let playedExplosionSound = false;
let successSound;
let playedSuccessSound = false;

// initiate all game variables
let totalTime = 80;
let startTime;

let pressCount = 0;
let targetPresses = 30;
let challengeActive = false;

let selectedNumber = 0;
let correctAnswer = 5;
let mathAnswered = false;
let feedback = "";

let currentSelection = -1;
let lockedIn = false;
let noteMessage = "";
let noteAnswerIndex = 0;

let morseCode = "";
let userInput = "";
let roundActive = false;
let showSuccess = false;
let showFailure = false;

function preload() {
  imgWelcome = loadImage("start.png");
  imgInstructions = loadImage("instructions.png");
  imgButtonSmash = loadImage("button_smash.png");
  buttonMashSuccessImg = loadImage("stage1_success.png");
  mathQuizSuccessImg = loadImage("stage2_success.png");
  noteMatchSuccessImg = loadImage("stage3_success.png");
  morseCodeSuccessImg = loadImage("stage4_success.png");
  imgMathRiddle = loadImage("math_riddle.png");
  imgNoteMatch = loadImage("note_match.png");
  imgMorseCode1 = loadImage("morse_code1.png");
  imgMorseCode2 = loadImage("morse_code2.png");
  imgBombDefused = loadImage("defused.png");
  imgBombExploded = loadImage("exploded.png");
  bombSound = loadSound('bomb.mp3');
  successSound = loadSound('success.mp3');
  imgCodeEntry = loadImage("code_entry.png")
}

function setup() {
  createCanvas(600, 600);
  textAlign(CENTER, CENTER);

  port = createSerial();

}

function startGame() {
  startTime = millis(); // Set the start time for the timer
  gameStarted = true; // Set the flag to start the game
  currentGame = 0; // Set the current game to 0
  sendGameSwitch(0); // Send game switch signal to Arduino
  startButtonMashChallenge(); // Start the Button Mash Challenge
}

function draw() {
  background(220);

  // displays screen for when bomb is defused along with sound effects
  if (bombDefused) {
      image(imgBombDefused, 0, 0, width, height);
    if (!playedSuccessSound) {
        successSound.play();
        playedSuccessSound = true;
      }
      return;
    }
  // displays screen for when bomb is exploded along with sound effects
  if (bombExploded) {
      image(imgBombExploded, 0, 0, width, height);
      if (!playedExplosionSound) {
        bombSound.play();
        playedExplosionSound = true;
      }
      return;
    }

  // Welcome Screen display
  if (showWelcome) {
    image(imgWelcome, 0, 0, width, height);
    return;
  }

  //Instructions Screen display
  if (showInstructions) {
    image(imgInstructions, 0, 0, width, height);
    return;
  }
  // calculates time to keep track of explosion and so on
  let elapsed = int((millis() - startTime) / 1000);
  let remaining = max(0, totalTime - elapsed);

  // if time runs out bomb is exploded
  if (remaining <= 0 && !bombDefused) {
    bombExploded = true;
    return;
  }

  // handle all incoming data by reading and sending to function after trimming
  if (port.opened() && port.available() > 0) {
    let data = port.readUntil("\n").trim();
    if (data.length > 0) {
      handleSerialData(data);
    }
  }

  // toggles success screens for all games
  if (stageCompleted) {
  switch (currentGame) {
    case 0:
      // Show success screen for Button Mash
      image(buttonMashSuccessImg, 0, 0, width, height);
      break;
    case 1:
      // Show success screen for Math Quiz
      image(mathQuizSuccessImg, 0, 0, width, height);
      break;
    case 2:
      // Show success screen for Note Match
      image(noteMatchSuccessImg, 0, 0, width, height);
      break;
    case 3:
      // Show success screen for Morse Code
      image(morseCodeSuccessImg, 0, 0, width, height);
      break;
  }
    // removes success screen afte 3 seconds and moves onto next game
    if (millis() - stageCompleteTime > 3000) {
      codeDigits.push(stageDigit);
      currentGame++;
      sendGameSwitch(currentGame);
      stageCompleted = false;

      // start the next game
      switch (currentGame) {
        case 1: startMathQuiz(); break;
        case 2: startNoteMatchChallenge(); break;
        case 3: startMorseCodeChallenge(); break;
        case 4: correctCode = "4297"; break;
      }
    }
    return;
  }

  // display game screens using functions defined
  switch (currentGame) {
    case 0: drawButtonMashChallenge(); break;
    case 1: drawMathQuiz(); break;
    case 2: drawNoteMatchChallenge(); break;
    case 3: drawMorseCodeChallenge(); break;
    case 4:
      correctCode = "4297";
      if (userCodeInput === "") startCodeEntry();
      drawCodeEntry();
      break;

  }
  // timer display at top of screen
  if (gameStarted && !bombDefused && !bombExploded) {
    textSize(20);
    fill(0);
    textAlign(CENTER, TOP);
    text("Time Remaining: " + remaining + "s", width / 2, 20);
  }

}

function handleSerialData(data) {

  if (bombDefused) {
    return; // no data should be handled if bomb has been defused
  }
  // stop handing data once bomb explodes
  if (data === "EXPLODED") {
    bombExploded = true;
    if (port.opened()) {
      port.write("EXPLODED\n");
    }
    return;
  }
  switch (currentGame) {
    case 0:
      if (data === "1" && challengeActive) {
        pressCount++;
        //  checks success condition, when user presses button 30 times
        if (pressCount >= targetPresses) {
          challengeActive = false;
          // handle necessary flags for this stage and keep track of time for success screen display
          stageDigit = 4;
          gameCompleted[0] = true;
          stageCompleted = true;
          stageCompleteTime = millis();
        }
      }
      break;

    case 1:
      if (data.startsWith("SELECT:")) {// parses data for this specific game
        selectedAnswer = int(data.substring(7));  // 8th character gives actual numeric value
      } else if (data.startsWith("PRESS:")) {  // for confirm button press
        let val = int(data.substring(6));  // 7th character gives digit confirmed by user
        // success condition
        if (val === correctAnswer) {
          feedback = "CORRECT";
          stageDigit = 2;
          gameCompleted[1] = true;
          stageCompleted = true;
          stageCompleteTime = millis();
        } else {
          // in case of wrong answer
          bombExploded = true;
          if (port.opened()) {
            port.write("EXPLODED\n");
          }
        }
      }
      break;
    // handling data for note match game
    case 2:
      // if user presses confirm button, checks answer
      if (!lockedIn) {
        if (data === "CONFIRM") {
          lockedIn = true;
          // if correct answer is selected
          if (currentSelection === noteAnswerIndex) {
            noteMessage = "Correct!";
            stageDigit = 9;
            gameCompleted[2] = true;
            stageCompleted = true;
            stageCompleteTime = millis();
            // if user makes a mistake, they lose
          } else {
            bombExploded = true;
            if (port.opened()) {
              port.write("EXPLODED\n");
            }
          }
        } else if (!isNaN(int(data))) {
          currentSelection = int(data);  // reading data for option selected
        }
      }
      break;
    // parsing user input based on arduino feedback to concatenate morse code and compare with original string
    case 3:
      if (data === "." || data === "-") {
        userInput += data;
        // if user confirms answer
      } else if (data === "CONFIRM") {
        if (userInput === morseCode) {
          showSuccess = true;
          stageDigit = 7;
          gameCompleted[3] = true;
          stageCompleted = true;
          stageCompleteTime = millis();
          roundActive = false;
          // in case of incorrect answer
        } else {
          bombExploded = true;
          if (port.opened()) {
            port.write("EXPLODED\n");
          }
        } // displays morse code for 5 seconds for user to memorize then disappears
        setTimeout(() => {
          showSuccess = false;
          showFailure = false;
          userInput = "";
        }, 5000);
      }
      break;

    case 4:
      // handles code entry
      if (data === "CONFIRM") {
        if (userCodeInput.length !== 4) return; // Ignore if code is incomplete
        if (userCodeInput === "4297") {
          bombDefused = true;
        } else {
          bombExploded = true;
          if (port.opened()) {
            port.write("EXPLODED\n");
          }
        }
      }
      break;
  }
}
// to tell arduino to switch to game being sent
function sendGameSwitch(gameNum) {
  if (port.opened()) {
    port.write(gameNum + "\n");
  }
}

// all game display functions
function startButtonMashChallenge() {
  pressCount = 0;
  challengeActive = true;
}

function drawButtonMashChallenge() {
  image(imgButtonSmash, 0, 0, width, height);
  fill(255);
  textSize(44);
  textAlign(CENTER, CENTER);
  text(pressCount, 300,325);
}

function startMathQuiz() {
  feedback = "";
  correctAnswer = 5;
  selectedAnswer = 0;
}


function drawMathQuiz() {
  image(imgMathRiddle, 0, 0, width, height);

  fill(29,148,94);
  rect(width / 2 - 40, 350, 80, 80);
  fill(0);
  textSize(48);
  text(selectedAnswer, width / 2, 370);

}

function startNoteMatchChallenge() {
  lockedIn = false;
  noteMessage = "";
  currentSelection = -1;
  noteAnswerIndex = floor(random(0, 4));
  sendNoteChallenge(noteAnswerIndex);
}

function drawNoteMatchChallenge() {
  image(imgNoteMatch, 0, 0, width, height);

  textSize(24);
  textAlign(CENTER, CENTER);
  fill(0);

  let labels = ["C", "D", "E", "F"];
  let size = 80;
  let spacing = 20;
  let totalWidth = labels.length * size + (labels.length - 1) * spacing;
  let startX = (width - totalWidth) / 2;
  let y = 300;

  for (let i = 0; i < labels.length; i++) {
    let x = startX + i * (size + spacing);

    if (i === currentSelection) {
      fill(0, 0, 255);
    } else {
      fill(255);
    }

    rect(x, y, size, size);

    fill(0);
    text(labels[i], x + size / 2, y + size / 2);
  }

  fill(0);
  textSize(20);
  text(noteMessage, width / 2, height - 50);
}


function startMorseCodeChallenge() {
  morseCode = "..-.--.";
  userInput = "";
  roundActive = true;
  showSuccess = false;
  showFailure = false;
  setTimeout(() => {
    roundActive = false;
  }, 5000);
}
// displays image with code for 5 seconds for user to memorize code
function drawMorseCodeChallenge() {
  if (roundActive) {
    image(imgMorseCode1, 0, 0, width, height);
  } else {
    image(imgMorseCode2, 0, 0, width, height);}
  fill(50,50,50);
  textSize(24);
  text("User input: " + userInput, width / 2, 300);
}

function drawCodeEntry() {
  image(imgCodeEntry, 0, 0, width, height);
  textSize(24);
  fill(0);
  text(userCodeInput, width / 2, 170);

  for (let i = 0; i <= 9; i++) {
    let x = 140 + (i % 5) * 80;
    let y = 220 + floor(i / 5) * 80;
    fill(200);
    rect(x, y, 60, 60);
    fill(0);
    text(i, x + 30, y + 30);
  }

  fill(255);
  rect(width / 2 - 35, 410, 70, 40);
  fill(0);
  text("Clear", width / 2, 420);
}

function mousePressed() {
  // handles navigation from welcome screen to instructions screen and instructions screen and back
  if (showWelcome) {
    if (mouseX > 112 && mouseX < 224 && mouseY > 508 && mouseY < 547) {
      try {
        // creating serial connection
        if (!port.opened()) {
          let usedPorts = usedSerialPorts();
          if (usedPorts.length > 0) {
            port.open(usedPorts[0], baudrate);
          } else {
            port.open(baudrate);
          }
        }
        console.log("Connected to serial!");
        startGame();
        showWelcome = false;
      } catch (err) {
        console.error("Connection failed:", err);
      }
    }

    if (mouseX > 275 && mouseX < 544 && mouseY > 506 && mouseY < 545) {
      showInstructions = true;
      showWelcome = false;
    }
    return;
  }

  if (showInstructions) {
    // Click anywhere to go back
    showInstructions = false;
    showWelcome = true;
  }
  // checks code entry
  if (currentGame === 4 && !bombDefused && !bombExploded) {
    for (let i = 0; i <= 9; i++) {
      let x = 140 + (i % 5) * 80;
      let y = 220 + floor(i / 5) * 80;
      if (mouseX > x && mouseX < x + 60 && mouseY > y && mouseY < y + 60) {
        userCodeInput += i;
        return;
      }
    }

    // clear button
    if (mouseX > width / 2 - 30 && mouseX < width / 2 + 30 &&
        mouseY > 400 && mouseY < 440) {
      userCodeInput = userCodeInput.slice(0, -1);
      return;
    }
    // successful code entry defuses bomb successfully
    if (userCodeInput.length === 4) {
      if (userCodeInput === correctCode) {
        bombDefused = true;
        port.write("DEFUSED\n");
      }
      else bombExploded = true;
    }
  }
}
// for arduino to choose note sent as correct note and play it for users to guess
function sendNoteChallenge(noteIndex) {
  if (port.opened()) {
    port.write("NOTE:" + noteIndex + "\n");
  }
}
function startCodeEntry() {
  userCodeInput = "";
}

// resets all game variables for reset functionality once game ends
function resetGame() {
  showWelcome = true;
  showInstructions = false;
  gameStarted = false;
  currentGame = 0;
  gameCompleted = [false, false, false, false];
  codeDigits = [];
  userCodeInput = "";
  correctCode = "";
  bombDefused = false;
  bombExploded = false;
  stageCompleted = false;
  stageCompleteTime = 0;
  stageDigit = -1;
  pressCount = 0;
  challengeActive = false;
  selectedAnswer = 0;
  correctAnswer = 5;
  feedback = "";
  currentSelection = -1;
  lockedIn = false;
  noteMessage = "";
  noteAnswerIndex = 0;
  morserrCode = "";
  userInput = "";
  roundActive = false;
  showSuccess = false;
  showFailure = false;
  playedExplosionSound = false;
  playedSuccessSound = false;
}
// if user presses key once game is over, it restarts everything
function keyPressed() {
  if (key === 'R' || key === 'r') {
    resetGame();
    port.write("RESET\n");
  }
}

Challenges & Lessons Learned

• Serial Port Management: One recurring headache was managing serial port connections on browser refreshes and game resets. I had to add logic to prevent re-opening already open ports to avoid exceptions.

• Real-Time Feedback: Timing and responsiveness were crucial. Since the game runs on a strict timer, any lag in serial communication or missed input could break the experience. Careful buffering and validation were necessary.

• Game Flow Management: Keeping track of game state across 5 different modes, plus timers and sounds, took careful design. The stageCompleted flag and a timed transition window after each success proved essential.

For my final project, I had my friend Taif and few others test out my Arduino-based bomb defusal game. Overall, the feedback was quite positive and also highlighted some good areas for improvement.

All of the players were able to figure out the core mechanics pretty quickly. The buttons worked smoothly and felt responsive. Most people could navigate the game on their own without much explanation, which was great to see. The Button Smash, Note Match, and Morse Code modules were especially well-received and fun for the players.

One thing that confused some users was the Math Riddle module. The instructions weren’t as clear for that one, such as how to choose the answer, and players weren’t sure what to do at first. Another part that could be improved is the final code entry step – it wasn’t obvious to everyone when or how they were supposed to enter it.

Some suggestions I got were:

• Add better instructions at the start for each game or stage.

• Make the countdown more dramatic and obvious with more frequent or intense LED flashing near the end.

Things to be implemented : LED lighting for more visual feedback and a more visible timer, also I feel l might reduce the overall time to solve the puzzles since users usually finished before the time ran out quite easily.

Even though some elements  weren’t implemented yet, the players enjoyed the concept and the tension of the timer. Overall, user testing helped me find small tweaks to make the game smoother and more fun.

User Testing Video : https://drive.google.com/drive/folders/1tCRKILVrXj7VhVwkL0nhwQ5oa913earC?usp=share_link

The project is a bomb defusal puzzle box, consisting of four mini-games that must be solved in sequence to reveal a 4-digit defusal code. Each completed challenge unlocks one digit of the code. After all four digits are revealed, the player must input the code correctly to determine which wire to “cut” to defuse the bomb.

The gameplay is immersive and pressure-driven, combining speed, precision, memory, and logic.

 The 4 Challenges

    1. Button Mash

1. • Tap a button exactly 24 times as fast as possible so that user can move onto next challenge without wasting too much time. Encourages rhythm and pressure timing and serves as a warmup game for users as well.


     2. Math Lock

     A simple math problem appears on screen. The user selects their  answer by turning a potentiometer. A confirm button locks in the answer. Feedback is given through p5.js on correctness.


     3. Note Match

     A musical note (from 4 pitches) is played using a buzzer. The player uses one of four buttons to play and listen to notes. When confident, the player presses a confirm button to lock in their selection. Visual feedback shows which note they selected.


     4. Morse Code

     A Morse code pattern ( with dots and dashes) representing a letter is shown briefly on screen. The user recreates the pattern using . and – through short and long presses of a button and then lock in their answer using a designated confirm button

Arduino Program: Input/Output Design

Inputs:

Buttons: 4 buttons which will be multipurpose and serve as options for the various challenges and one button which will act as confirmation button and users will use it to lock in their answer.

Potentiometer: For Math Lock answer selection.

Outputs:

Buzzer: For Note Match playback.
Serial Communication: Sends current state/selections to p5.js.

Arduino to p5.js:

Selections (0–3 for Note Match/Math Lock)
Dot/dash inputs during Morse Code
Tap count for Button Mash
“CONFIRM” for challenge submission

p5.js to Arduino:

Math problem and options
Correct note index
Target Morse code sequence
Challenge start triggers

Visuals and Logic – p5js

1. Rendering challenge screens
2. Displaying math problems, notes, and Morse codes
3. Receiving real-time input signals via serial
4. Confirming answers and unlocking digits
5. Displaying progress toward final defusal

After all 4 digits are unlocked, p5 transitions to a final code entry stage:

– The player enters the 4-digit code
– If correct, p5 shows which colored wire to cut (physically implemented via clip wire/jumpers)
– If incorrect, p5 gives a failure message

So for my final project, I have decided to create a game called ‘Code Red’, and it’s like a bomb defusal game where players race against time to solver certain challenges before time runs out and each challenge the player successfully completely, one digit of the code is revealed to them. Once they have completed all challenges successfully, they will have to enter the numbers which were revealed to them at the end of each challenge and if they enter the correct code before time runs out, they have defused the bomb.

The Arduino will handle the hardware side:

• Reading button inputs, knob rotation, etc.
• Lighting LEDs to indicate bomb status
• Using a buzzer for alerts, errors, and countdown tension

p5js will handle the visual and game logic:

• Showing the bomb interface, countdown timer, and progress (how many challenges completed)
• Giving feedback (success/fail) for each challenge
• Triggering animations and effects based on player actions

Group members : Kashish Satija, Liya Rafeeq

Exercise 11.1 :

1. Make something that uses only one sensor  on Arduino and makes the ellipse in p5 move on the horizontal axis, in the middle of the screen, and nothing on arduino is controlled by p5 – for this we used a potentiometer. We mapped the values of the potentiometer to change the X coordinate of the ellipse, making it move along the horizontal axis.

P5.JS CODE :

let port;
let connectBtn;
let baudrate = 9600;

function setup() {
  createCanvas(400, 400);
  background(220);

  port = createSerial();

  // in setup, we can open ports we have used previously
  // without user interaction

  let usedPorts = usedSerialPorts();
  if (usedPorts.length > 0) {
    port.open(usedPorts[0], baudrate);
  }
  let connectBtn = createButton("Connect to Serial");
  connectBtn.mousePressed(() => port.open(baudrate));
}

function draw() {


  // Read from the serial port. This non-blocking function
  // returns the complete line until the character or ""
  let str = port.readUntil("\n");
  if (str.length > 0) {
    background("white");
    ellipse(int(str),200,40,40)
  }

}

ARDUINO CODE:

void setup() {
  Serial.begin(9600); // initialize serial communications
}

void loop() {
  // read the input pin:
  int potentiometer = analogRead(A1);
  // remap the pot value to 0-400:
  int mappedPotValue = map(potentiometer, 0, 1023, 0, 400);
  // print the value to the serial port.
  Serial.println(mappedPotValue);
  // slight delay to stabilize the ADC:
  delay(1);

  // Delay so we only send 10 times per second and don't
  // flood the serial connection leading to missed characters on the receiving side
  delay(100);
}

Exercise 11.2 :

2. Make something that controls the LED brightness from p5. For this, we made a circle that moves along the Y axis. According to the Y coordinates, the LED turns brighter or lower.

P5.JS. CODE:

let port;
let connectBtn;
let baudrate = 9600;

function setup() {
  createCanvas(255, 285);
  port = createSerial();

  // in setup, we can open ports we have used previously
  // without user interaction

  let usedPorts = usedSerialPorts();
  if (usedPorts.length > 0) {
  port.open(usedPorts[0], baudrate);
} else {
  connectBtn = createButton("Connect to Serial");
  connectBtn.mousePressed(() => port.open(baudrate));
}
}

function draw() {
  background(220);
  circle(128,mouseY,30,30)
  let sendtoArduino = String(mouseY) + "\n"
  port.write(sendtoArduino);
}

ARDUINO CODE:

int led = 5;

void setup() {
  // put your setup code here, to run once:
  Serial.begin(9600);
  pinMode(led, OUTPUT);
}

void loop() {
  // put your main code here, to run repeatedly:
  while (Serial.available())
    {
    digitalWrite(LED_BUILTIN, HIGH); // led on while receiving data
    int brightness = Serial.parseInt(); //get slider value from p5
     if (Serial.read() == '\n') {
       analogWrite(led, brightness);
    }
  }
}

Exercise 11.3:

let baudrate = 9600;
let velocity;
let gravity;
let position;
let acceleration;
let wind;
let drag = 0.99;
let mass = 50;
let str="";
let val;
let heightOfBall = 0;

function setup() {
  createCanvas(640, 360);
  noFill();
  position = createVector(width/2, 0);
  velocity = createVector(0,0);
  acceleration = createVector(0,0);
  gravity = createVector(0, 0.5*mass);
  wind = createVector(0,0);
  port = createSerial();

  // in setup, we can open ports we have used previously
  // without user interaction

  let usedPorts = usedSerialPorts();
  if (usedPorts.length > 0) {
  port.open(usedPorts[0], baudrate);
} else {
  connectBtn = createButton("Connect to Serial");
  connectBtn.mousePressed(() => port.open(baudrate));
}
}

function draw() {
  background(255);
  applyForce(wind);
  applyForce(gravity);
  velocity.add(acceleration);
  velocity.mult(drag);
  position.add(velocity);
  acceleration.mult(0);
  ellipse(position.x,position.y,mass,mass);
  if (position.y > height-mass/2) {
      velocity.y *= -0.9;  // A little dampening when hitting the bottom
      position.y = height-mass/2;
      heightOfBall = 0;
    } else {
      heightOfBall = 1;
    }
  str = port.readUntil("\n");
  val=int(str);
  if (!isNaN(val)) {
  breeze(val);
  }
}
function applyForce(force){
  // Newton's 2nd law: F = M * A
  // or A = F / M
  let f = p5.Vector.div(force, mass);
  acceleration.add(f);
}

function breeze(val){
  if (val<400){
    wind.x=-1;
  }
  else if (val>500 && val<900){
    wind.x=1;
  } else {
    wind.x=0
  }
  let sendToArduino = String(heightOfBall)  + "\n";
  port.write(sendToArduino);
}
function keyPressed(){
  if (key==' '){
    mass=random(15,80);
    position.y=-mass;
    velocity.mult(0);
  }
}

int led = 5;
void setup() {
  Serial.begin(9600); // initialize serial communications
}

void loop() {
  if (Serial.available()) {
    int ballState = Serial.parseInt(); // reads full number like 0 or 1
    if (ballState == 1) {
      digitalWrite(led, HIGH); // ball on ground
    } else {
      digitalWrite(led, LOW); // ball in air or default
    }
  }
  // read the input pin:
  int potentiometer = analogRead(A1);
  //

  remap the pot value to 0-400:
  int mappedPotValue = map(potentiometer, 0, 1023, 0, 900);
  // print the value to the serial port.
  Serial.println(mappedPotValue);
  // slight delay to stabilize the ADC:
  delay(1);

  // Delay so we only send 10 times per second and don't
  // flood the serial connection leading to missed characters on the receiving side
  delay(100);
}

While reading A Brief Rant on the Future of Interaction Design, I didn’t really expect it to be this focused on hands. But the author makes a pretty solid point: for all our futuristic tech, we’re still weirdly okay with staring and tapping at flat glass rectangles all day. It’s kind of wild how little we think about how limited that is compared to what our hands are actually capable of.

What really stuck with me was the idea that “Pictures Under Glass” is basically a transition phase. We’re so used to touchscreens that we’ve stopped questioning whether they’re actually good. The essay really challenges that, and it’s kinda refreshing. It reminded me of how good tools should feel natural, like when you’re making a sandwich and your hands just know what to do without you even thinking about it. You don’t get that with a tablet or phone. You’re just poking at digital buttons.

I also liked how the author ties this all back to choice. Like, we’re not just being dragged into a touchscreen future, we’re choosing it, whether we realize it or not. That part made me think about design more like storytelling or world-building. We’re shaping how people live and interact, and that’s a big deal.

Overall, it was a fun read with a strong message to stop settling for tech that dulls our senses. Our bodies are way more capable than what current interfaces allow, and maybe the real futuristic thing would be tech that actually lets us do more and not less.

—————————————————————-

Reading the follow-up article helped me better understand where the author was coming from. It’s not just a complaint about modern tech, it’s a call to action. He’s not saying the iPad or touchscreen interfaces are bad. In fact, he even says they are revolutionary. The point is that we shouldn’t stop there. Just because something works now doesn’t mean it can’t be better.

What really stood out to me was the idea that technology doesn’t just evolve on its own. People make choices on what to build, what to fund, what to imagine. If we don’t invest in more expressive, physical ways to interact with computers, we’re basically choosing a future where everything stays flat and glassy.

I also liked how the author handled the voice interface discussion. Voice has its place, commands, quick info, etc. but when it comes to creating or understanding complex things, it falls short. You can’t sculpt a statue or sketch a design with just your voice. Some things require our hands, our bodies, our sense of space.

That quote from the neuroscientist about touch and brain development was super eye-opening. It made me think about how much we take our sense of touch for granted, especially when using digital devices. In the end, the response made the original rant feel less like a critique and more like an invitation to dream a little bigger about what our future tech could be.

For this week’s assignment, we were tasked with using Arduino to create a musical instrument. Working in pairs, Areeba and I decided to create a piano based on the tone() function we had explored earlier in class. In our project, we wanted each button switch to correspond to a different note from a piano, so that it could be “played”.

We were asked to use both an analogue and digital component for the assignment; while the digital component was simple enough with the buttons, we decided to use a pontentiometer as our analogue component, and used it to control the pitch of the notes being produced by each button.

The components we used were:

• Arduino Uno
• Breadboards
• Jumper cables
• 10k Ohm resistors
• Push buttons
• 5V speaker

Here is an image of our project, and the schematic:

Our code:

#include "pitches.h"

const int potPin = A0;          // Potentiometer on A0
const int buzzerPin = 8;        // Speaker on D8
const int buttonPins[] = {2, 3, 4, 5, 6, 7, 9, 10}; // C4-C5 buttons
const int baseNotes[] = {NOTE_C4, NOTE_D4, NOTE_E4, NOTE_F4, NOTE_G4, NOTE_A4, NOTE_B4, NOTE_C5};

void setup() {
  for (int i = 0; i < 8; i++) {
    pinMode(buttonPins[i], INPUT);
  }
  pinMode(buzzerPin, OUTPUT);
}

void loop() {
  static int potValues[5] = {0};
  static int potIndex = 0;
  potValues[potIndex] = analogRead(potPin);
  potIndex = (potIndex + 1) % 5;
  int octaveShift = map(
    (potValues[0] + potValues[1] + potValues[2] + potValues[3] + potValues[4]) / 5,
    0, 1023, -2, 2
  );

  // Check buttons
  bool notePlaying = false;
  for (int i = 0; i < 8; i++) {
    if (digitalRead(buttonPins[i]) == HIGH) { // HIGH when pressed (5V)
      int shiftedNote = baseNotes[i] * pow(2, octaveShift);
      tone(buzzerPin, constrain(shiftedNote, 31, 4000));
      notePlaying = true;
      break;
    }
  }

  if (!notePlaying) {
    noTone(buzzerPin);
  }
  delay(10);
}

Videos of our project:

Playing Happy Birthday

Adjusting the Potentiometer

A challenge we faced was definitely our lack of musical knowledge. Neither Kashish or I are musicians, and as such, we had to do a lot of research to understand the terminology and theory, such as the notes, and how to adjust the octave using the potentiometer. We then also had to figure how to reflect these findings within our code.

Overall though, we had a great time making this project, and then executing our idea.

For this week’s assignment, we were tasked with building a project that controls at least one LED using a digital sensor and another using an analog sensor. Inspired by the iconic flashing lights of police sirens, I created a setup where two LEDs alternate in a flashing pattern, mimicking the red and blue lights with a twist, you can control the flashing speed in real-time.

Video link :
https://drive.google.com/drive/folders/162WwnI-EoY3XR8ZpefkEw1aVkdSKWeLl?usp=drive_link

Components used :

– Arduino Uno
– Push Button (Digital Sensor)
– Potentiometer (Analog Sensor)
– Red LED
– Blue LED
– 2 330Ω Resistors
– Breadboard & Jumper Wires

How it Works:

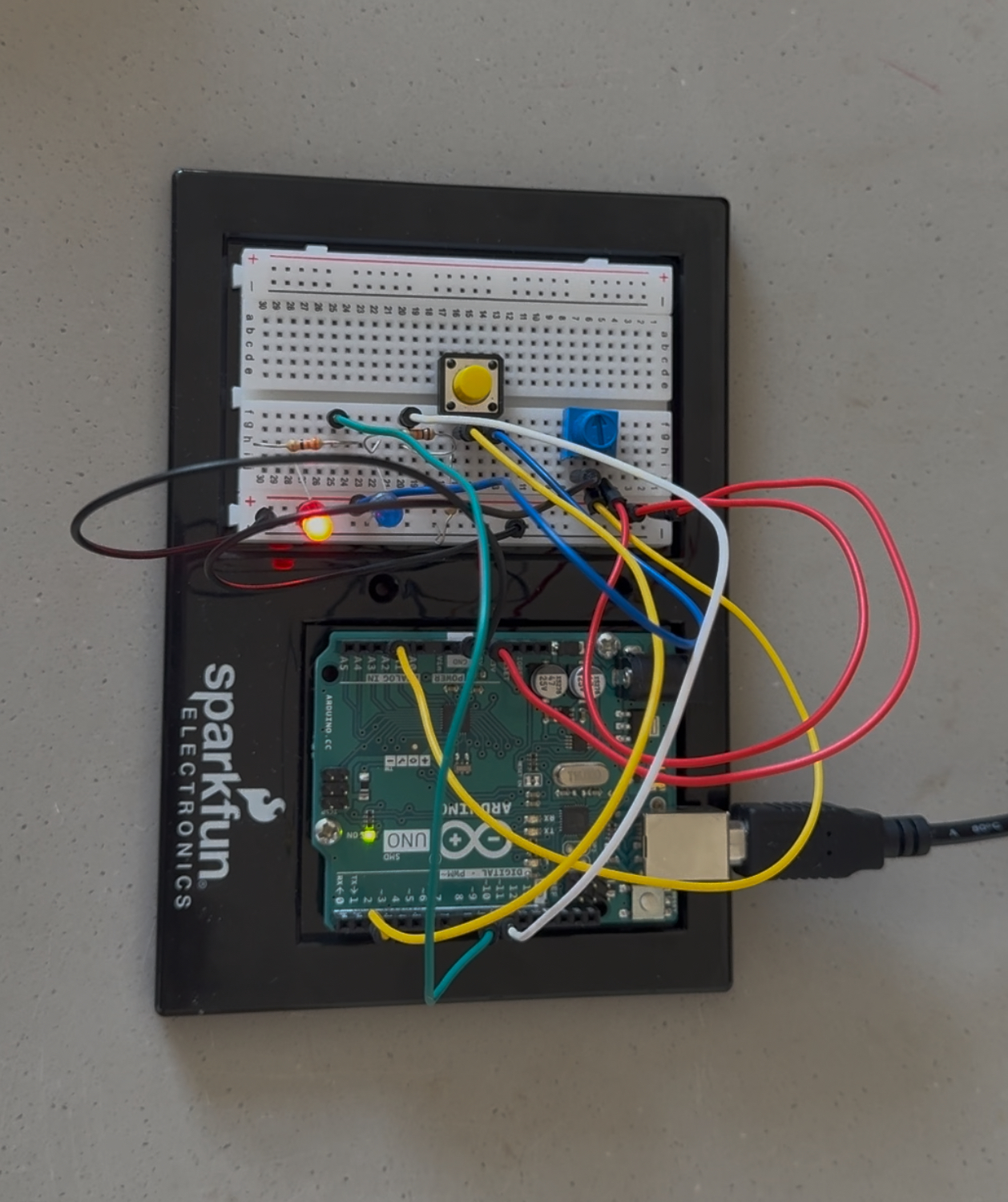

The system is activated with a push button, which acts as the digital trigger. Once pressed, the LEDs begin their alternating flashing sequence, simulating the back-and-forth of police siren lights.

The potentiometer controls the speed of the siren lights. Its analog value is read and mapped using the map() function to determine the timing of the red LED’s fade cycle. The red LED smoothly fades in and out using analogWrite(), and the duration of this full cycle is used to time the LED transitions.

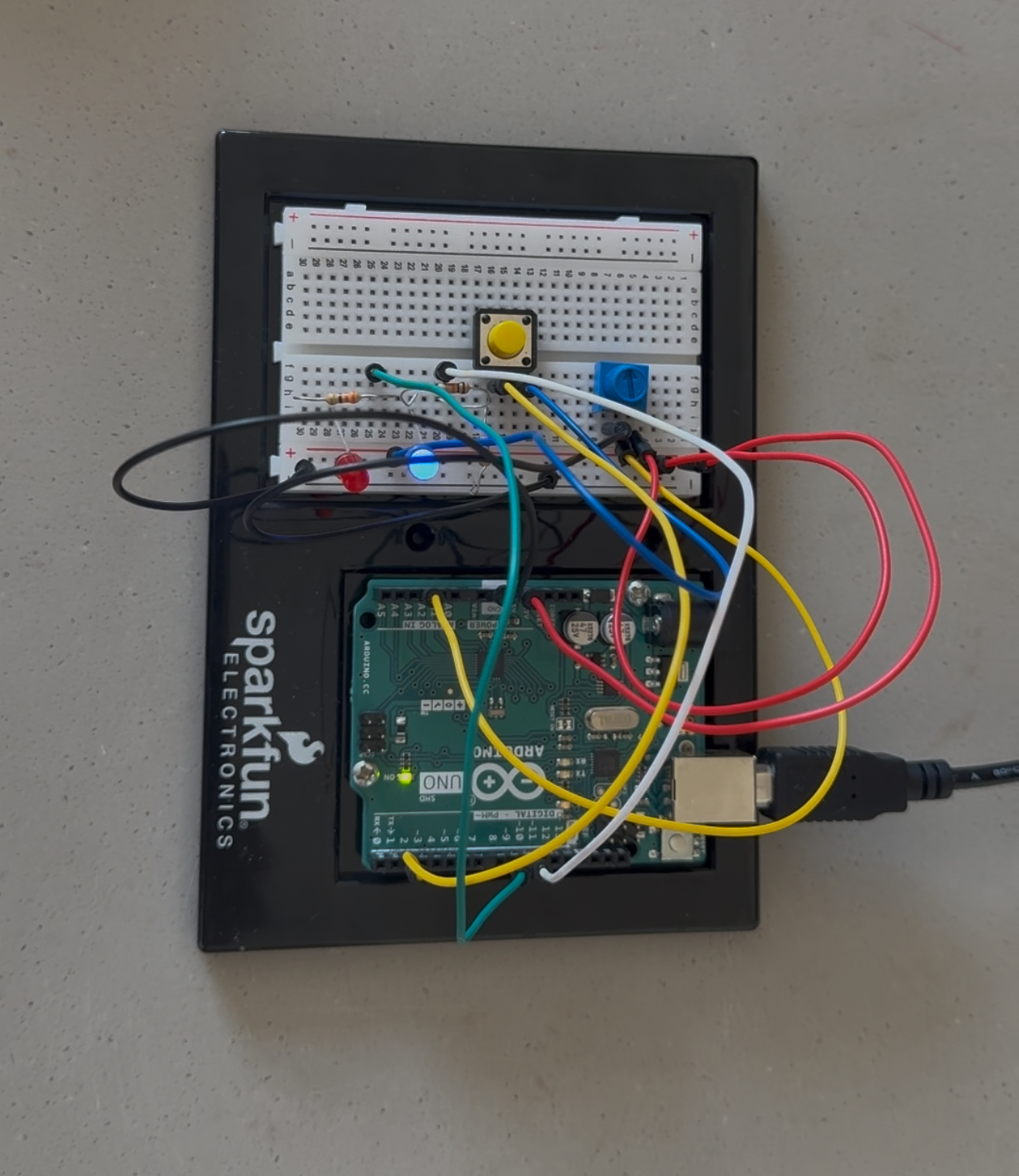

When the red LED finishes fading out, the blue LED turns on and remains lit for the same duration that the red LED is off. As soon as the red LED begins its next fade-in cycle, the blue LED turns off. This creates a continuous alternating pattern between red and blue LEDs, closely resembling the flashing of police lights.

One of the main challenges I faced was ensuring that the blue LED only turns on when the red LED is completely off. Initially, the timings between the LEDs were slightly off, which caused both LEDs to overlap or leave gaps between transitions.

Perfecting the fade timing and ensuring the blue LED’s on-time was synced precisely with the red LED’s off-time took some fine-tuning. I had to carefully balance the delays and the mapped potentiometer values to make the flashing appear smooth and consistent, without any flicker or overlap.

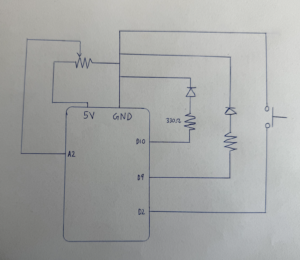

// Pin definitions
const int POT_PIN = A2;      // Potentiometer connected to A2
const int BUTTON_PIN = 2;    // Push button connected to D2
const int RED_LED_PIN = 9;   // Red LED connected to D9
const int BLUE_LED_PIN = 10; // Blue LED connected to D10

// Variables
int potValue = 0;
bool buttonState = false;
bool lastButtonState = false;
bool systemActive = false;

// Red LED fading variables
unsigned long fadeStartTime = 0;
int fadeDuration = 2000;     // Default fade duration (in ms)
int currentBrightness = 0;   // Current red LED brightness
enum FadeState { FADE_IN, FADE_OUT, GAP, IDLE };
FadeState fadeState = IDLE;

void setup() {
  // Initialize pins
  pinMode(BUTTON_PIN, INPUT_PULLUP);
  pinMode(RED_LED_PIN, OUTPUT);
  pinMode(BLUE_LED_PIN, OUTPUT);

  // Start with all LEDs off
  digitalWrite(BLUE_LED_PIN, LOW);
  analogWrite(RED_LED_PIN, 0);
}

void loop() {
  // Read potentiometer and map to fade duration (100ms to 5000ms)
  potValue = analogRead(POT_PIN);
  fadeDuration = map(potValue, 0, 1023, 100, 5000);

  buttonState = digitalRead(BUTTON_PIN);

  if (buttonState == LOW && lastButtonState == HIGH) {
    // Toggle system on/off
    systemActive = !systemActive;

    if (systemActive) {
      // Start the cycle
      fadeState = FADE_IN;
      fadeStartTime = millis();
    } else {
      // Turn everything off
      fadeState = IDLE;
      digitalWrite(BLUE_LED_PIN, LOW);
      analogWrite(RED_LED_PIN, 0);
    }
    delay(50); // Debounce delay
  }
  lastButtonState = buttonState;

  // Only process fading if system is active
  if (systemActive) {
    unsigned long currentTime = millis();
    unsigned long elapsedTime = currentTime - fadeStartTime;

    switch (fadeState) {
      case FADE_IN:
        currentBrightness = map(elapsedTime, 0, fadeDuration, 0, 255);
        digitalWrite(BLUE_LED_PIN, LOW); // Blue off during fade

        if (elapsedTime >= fadeDuration) {
          fadeState = FADE_OUT;
          fadeStartTime = currentTime;
        }
        break;

      case FADE_OUT:
        currentBrightness = map(elapsedTime, 0, fadeDuration, 255, 0);
        digitalWrite(BLUE_LED_PIN, LOW); // Blue off during fade

        if (elapsedTime >= fadeDuration) {
          fadeState = GAP;
          fadeStartTime = currentTime;
          digitalWrite(BLUE_LED_PIN, HIGH); // Blue on during gap
        }
        break;

      case GAP:
        currentBrightness = 0;

        if (elapsedTime >= fadeDuration) {
          fadeState = FADE_IN;
          fadeStartTime = currentTime;
          digitalWrite(BLUE_LED_PIN, LOW); // Blue off when fade starts
        }
        break;

      case IDLE:
        // Do nothing
        break;
    }

    // Update red LED brightness
    analogWrite(RED_LED_PIN, currentBrightness);
  }

  delay(10);
}

In the end, it all helped me better understand PWM control, timing logic, and how to coordinate multiple components using both analog and digital inputs on the Arduino.

“Physical Computing’s Greatest Hits (and Misses)” was like a fun tour through some of the most popular themes in interactive media projects and I appreciated how he didn’t just list the types of projects such as theremin-like instruments, drum gloves, tilty tables, video mirrors, etc. but really dug into why these ideas come up again and again.

What stood out to me most is how familiar many of these projects feel. Even if I haven’t built them myself, I’ve seen a lot of them or even thought about similar concepts. Igoe makes a great point that just because something’s been done before doesn’t mean you shouldn’t try your own take on it. There’s always room for originality in the way we approach or remix old ideas.

His section on LED fetishism was especially relatable and I feel like every beginner, including me, gets a little too excited about blinking lights. But even those simple projects can be meaningful with the right context.

I also liked his honesty about the limitations of certain projects. For example, waving over a sensor or watching yourself in a video mirror might be cool for a few seconds, but the interaction doesn’t always have depth. On the other hand, ideas like drum gloves or tilty controllers succeed because they connect more directly with natural, intuitive gestures.

Overall, Igoe’s piece made me think more critically about interaction design, not just what’s cool or visually interesting, but what’s actually meaningful to the person using it and I’m hoping that’s something I’ll carry into my own work.

This reading honestly made me rethink how I approach interactive stuff. Igoe’s whole “don’t interpret your own work” thing called me out in the best way. I’m definitely guilty of wanting to explain every little thing, and giving context for everything. But his point is solid, if you tell people exactly how to engage with your piece, you’re not really giving them space to explore or react on their own.

I liked how he described interactive art as starting a conversation, not just delivering a monologue. You build the thing, set the scene, give people some hints, and then let them do their thing. His comparison to directing actors was kind of perfect too. You don’t hand someone a script and say “now cry here and feel sad exactly like this.” You give them room to figure it out. Same goes for interactive art, you’re building the set and handing out props, but the audience gets to decide what it all means.

I think that idea of stepping back and letting go of control is both a little scary and kind of exciting. People might totally misinterpret what you were going for, but they might also surprise you in a good way. So yeah, I’m definitely keeping this in mind as I start making things, give just enough direction to spark curiosity, then let people make it their own.
