Week 8 – Creative Switch

Concept:

For this week’s assignment, I decided to create a system to help me remember to sit with a straight posture and to avoid slouching. The system works using two sheets of aluminum foil connected to a buzzer. When the aluminum foils are connected (i.e. your back is touching the chair meaning you are sitting up straight), the buzzer is silenced. When the aluminum foils are separated, meaning you are slouching and your back is off the chair, then the buzzer gives tone, reminding you to sit up straight.

Demo + Setup:



Github Code: https://github.com/deema-hazim/into-to-IM-week-8/blob/main/Posture%20Buzzer%20Arduino%20Code

Implementation:

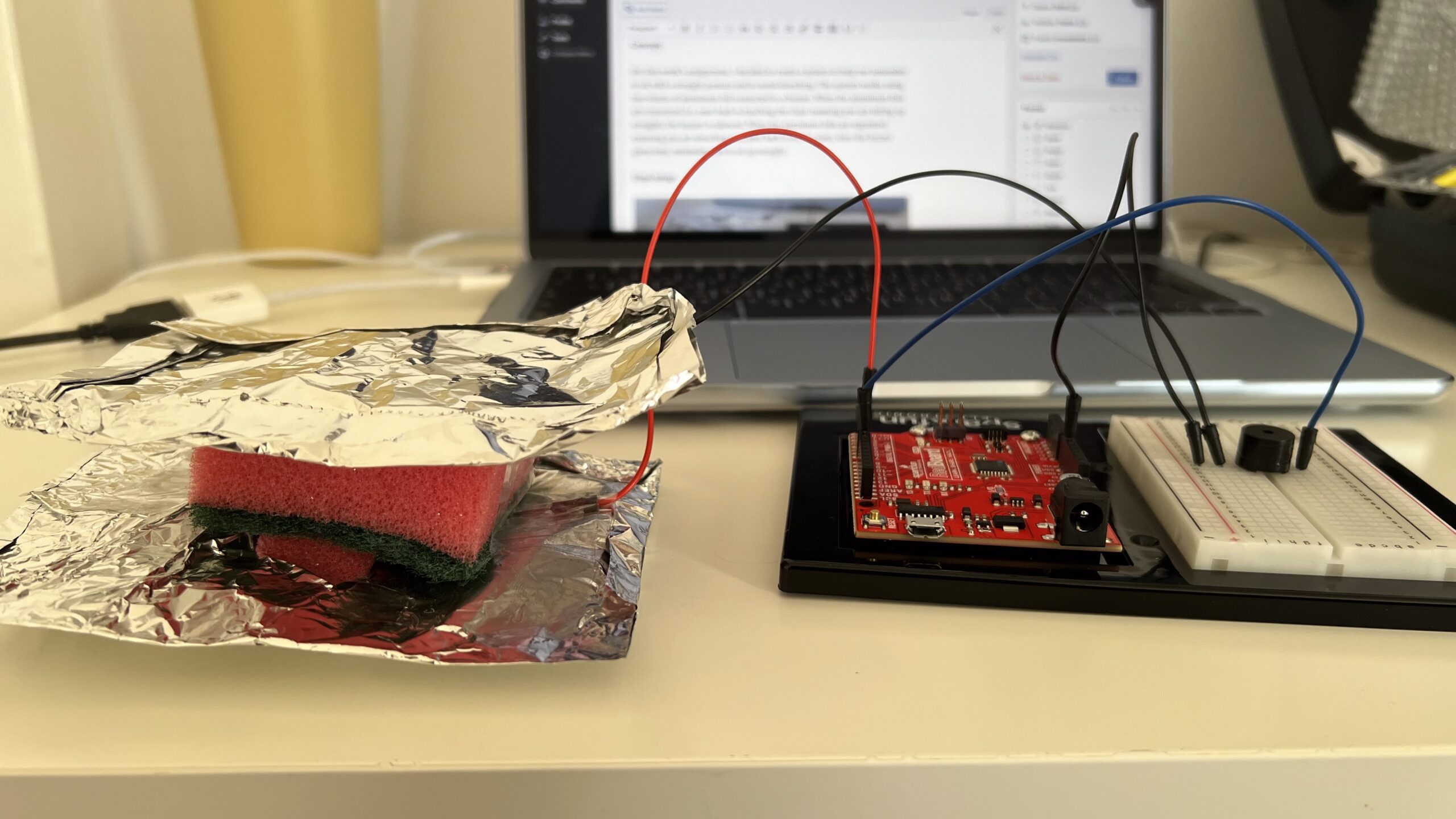

To create my foil switch, I taped two thin sheets of foil to a dish washing sponge. This works as a compression switch, so when you press the foils together they close the circuit, and when pressure is released, the sponge between them separates the foils and opens the circuit.

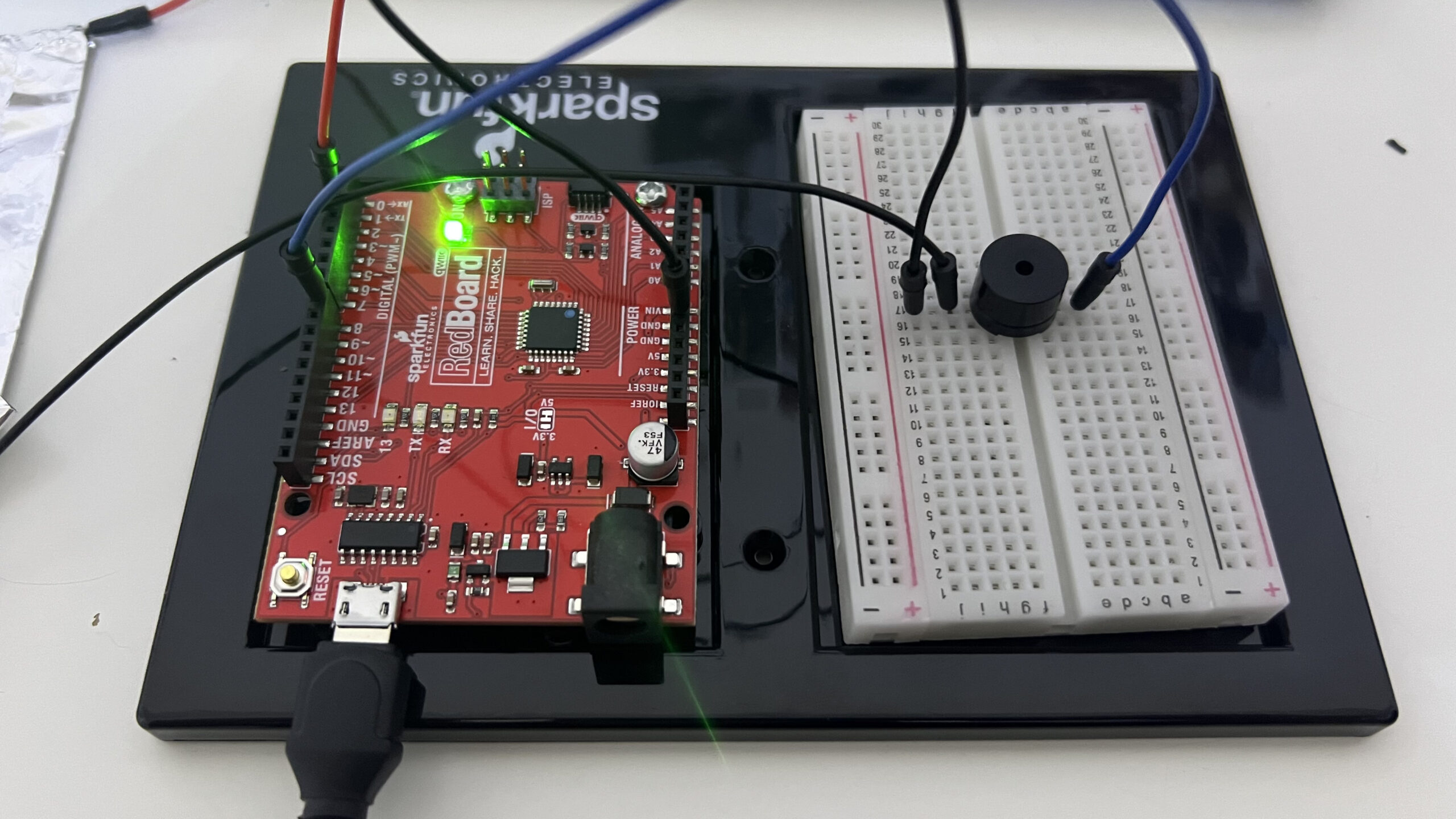

I connected one tin foil to digital pin 2, and the other foil to GND. This functions as the switch, so when the foils are touching they close the circuit, and when they are not the circuit is open.

For the buzzer, I connected its -ve leg to GND, and its +ve leg to digital pin 8.

void setup() {
  pinMode(foilPin, INPUT_PULLUP);
}

For the code, I used a new pinMode called INPUT_PULLUP. I found it while I was doing some research about Arduino coding, and essentially it just uses Arduino’s internal pull up resistors so you do not have to add a physical resistor into the circuit. I wanted to test this out to explore a bit with the code.

if (state == HIGH){ //foils not touching (slouching)
    delay(1500); //wait 2 seconds in case person is just moving
    if(digitalRead(foilPin)==HIGH) { //read input again, if person is still slouched
      tone(buzzer, 1000); //tone
    }
  }

I set an if-else statement so when the state of the foil switch is high, meaning the foils are not touching and the circuit is open, the buzzer will wait a few seconds before giving tone to account for when the user might just be adjusting their sitting position. After 2 seconds, there is another check to see if the foils are in fact still not touching, and then the buzzer gives tone. Else, as long as the circuit is closed, and the foils are touching, then there is no tone produced.

Reflection:

Overall, I am quite proud of my project and the usefulness behind its idea. It was also really exciting and fun to work with Arduino and I really enjoyed the concept of physical work combined with coding.

For the future, I would like to have longer wires so that I can set the Arduino and breadboard setup on my table when the foils are taped to my chair. I considered taping the entire setup to the chair, but that would then make it uncomfortable for the person sitting on the chair.
