Category: F2025 – Aya

Concept

Mini Piano

Given that we had to make a musical instrument, we were inspired by a project we found in YouTube of what seemed like a piano. From this, we aimed to make a smaller scale of this project following the requirements for the assignment. The circuit consists of one piezo speaker, a potentiometer as an analog sensor, and a three buttons as digital sensors.

Circuit Illustration

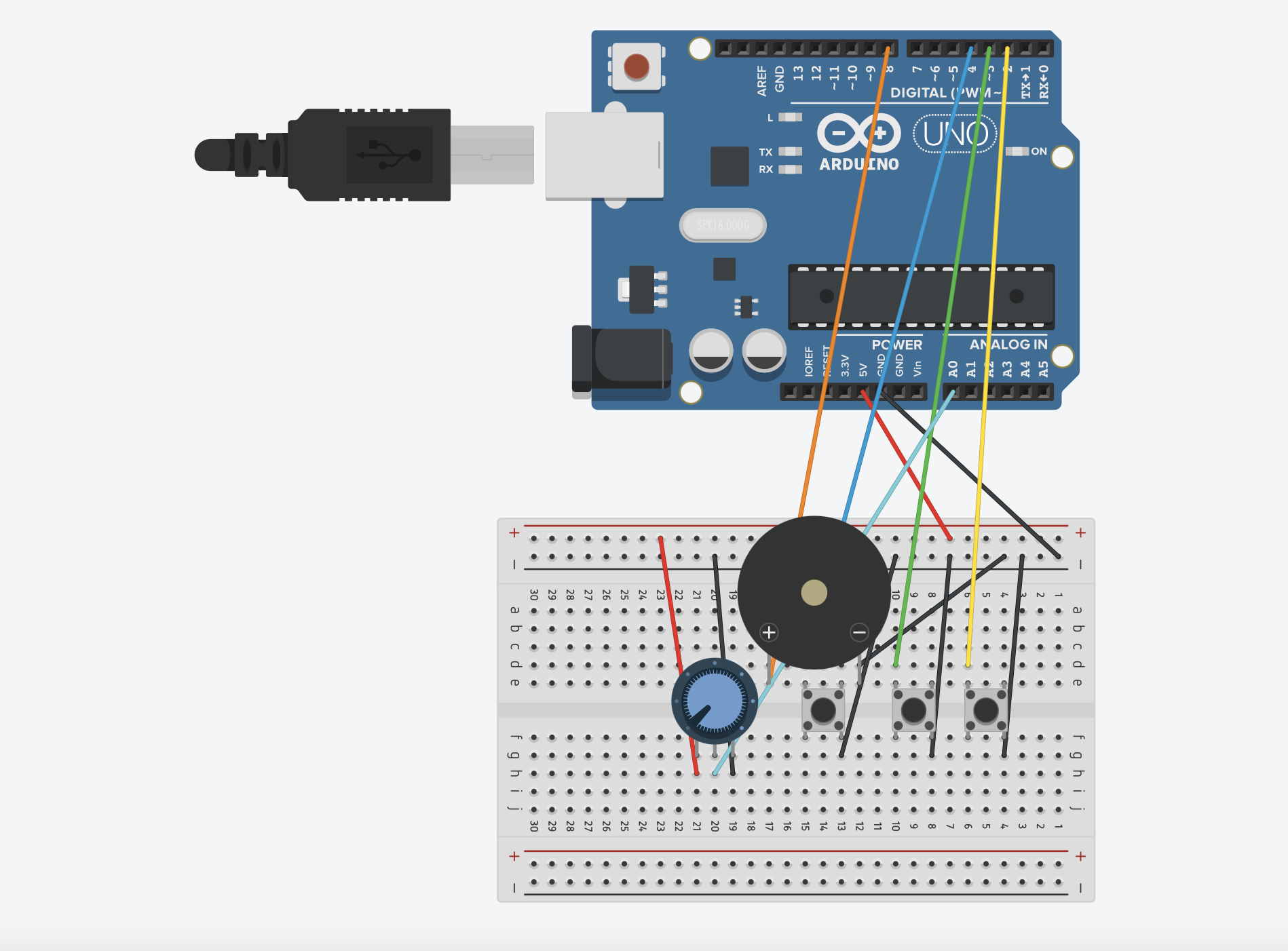

Figure 2 ( Circuit design with code and simulation on “Magnificent Jaiks” by Abdelrahman

Final Results

VIDEO

float octaveMultiplier = map(potValue, 0, 1023, 50, 200) / 100.0;

This reading made me rethink what “future technology” really means. I used to think of futuristic interfaces as things like touchscreens or holograms, but the author argues that these are actually limiting, that “Pictures Under Glass” remove the tactile richness that makes human interaction powerful. The way he describes how our hands feel and manipulate objects made me realize how much design has ignored our most natural abilities. We’ve gotten so used to flat screens that we’ve forgotten how much more expressive and intuitive touch and movement can be.

What stood out most to me was the idea that technology should amplify human capabilities, not replace or dull them. The examples about picking up a book or tying your shoes really drove this home. Those actions are effortless because they’re built on feedback, texture, and motion. It made me think about how most digital interfaces feel numb and disconnected by comparison.

I also liked how the author ended with a kind of challenge that the future is a choice. It made me see that innovation shouldn’t just be about what’s new, but about what’s better for human experience. As someone interested in design and tech, this made me want to think beyond screens and imagine tools that respond to our hands, our bodies, and the way we naturally move through the world.

Concept:

This week, Richmond and I  made a small musical instrument inspired by the piano. We used three switches to play notes.  We also added a potentiometer that can change the pitch of the notes while playing. This means the player can make higher or lower sounds with the same switches. Using the switches and potentiometer together makes the instrument more interactive and fun, giving the player control over both the notes and their frequency.

Video Demonstration:

https://drive.google.com/file/d/1tpGMX4FXWm4Y2IJe1WP9MxxI7M97yWc0/view?usp=sharing

Schematic:

Code Highlight:

// Mini Piano: 3 switches, Piezo buzzer, optional pitch adjustment

const int buzzerPin = 8;      // Piezo buzzer
const int switch1 = 2;        // Key 1 (C)
const int switch2 = 3;        // Key 2 (E)
const int switch3 = 4;        // Key 3 (G)
const int potPin = A0;        // Optional: pitch adjust

// Base frequencies for the notes (Hz)
int note1 = 262;  // C4
int note2 = 330;  // E4
int note3 = 392;  // G4

void setup() {
  pinMode(buzzerPin, OUTPUT);
  pinMode(switch1, INPUT);
  pinMode(switch2, INPUT);
  pinMode(switch3, INPUT);
  Serial.begin(9600); // optional for debugging
}

void loop() {
  // Read potentiometer to adjust pitch
  int potValue = analogRead(potPin);        // 0-1023
  float multiplier = map(potValue, 0, 1023, 80, 120) / 100.0;  // 0.8x to 1.2x

  bool anyKeyPressed = false;

  // Check switches and play corresponding notes
  if (digitalRead(switch1) == HIGH) {
    tone(buzzerPin, note1 * multiplier);
    anyKeyPressed = true;
  }

  if (digitalRead(switch2) == HIGH) {
    tone(buzzerPin, note2 * multiplier);
    anyKeyPressed = true;
  }

  if (digitalRead(switch3) == HIGH) {
    tone(buzzerPin, note3 * multiplier);
    anyKeyPressed = true;
  }

  // Stop sound if no switch is pressed
  if (!anyKeyPressed) {
    noTone(buzzerPin);
  }

  delay(10); // short delay for stability
}

Github Link:

https://github.com/JaydenAkpalu/Intro-to-IM/blob/a60e0ae114d3cd07e5e053a4b028d050f3606b30/Week10_Musical_Instrument.ino

Reflections & Future Improvements:

This week’s assignment felt highly interactive, building upon previous projects while introducing multiple input elements and user-controlled parameters. We learned how to combine both digital and analog inputs to create a responsive musical instrument. For future improvements, we would like to implement a more realistic note duration system, where each note fades out naturally after being played, similar to a real piano. Additionally, adding more switches and possibly multiple buzzers could allow for more complex melodies and chords, enhancing the expressive possibilities.

Inspiration:

For this week’s project, the main inspo for our instrument was Stormae’s Song “Alors on Danse”. We were mainly inspired by the way that the songs main notes are split into 3 notes of varying pitches, with one sound constantly playing in the background. For that reason we varied the pitches of the three sounds our project produces with a 4th note that is constantly playing when the button is pressed.

Concept:

For this week’s project, we used 3 light sensors to play sounds on the piezo speaker, with one note being played constantly when a button is clicked. With the light sensor, once the user’s finger covers the sensor that is when the note is played. Furthermore, we have three sensors each of which plays a different pitch on the piezo speaker. The condition that allows for this is the reading of the sensor in comparison to the threshold we defined. An additional component we added was the button that allows for the sounds to be played on the piezo speaker and then stopped once the button is pressed again.

Code:

int photoPins[3] = {A0, A1, A2};// first we define a list of integers holding the analog pins
int buttonPin = 2; // digi pin 2 for the buttons
int piezzoPin = 8; //digi pin 8 for the piezzo speaker

int threshold = 700; //this is the threshold fo rte light/no light intensity that worked wit our light sensors in our environment/lighting

bool prevPhoto[3] = {false, false, false}; //keeping track of whether the light sebsir was interacted with or not false initially
bool prevButton = false; //initially false
bool buttonState = false;//initially false

void setup() {
  pinMode(buttonPin, INPUT_PULLUP); //for the button pint as an input for the arduino
  pinMode(piezzoPin, OUTPUT); //setting the buzzor pin as output so the arduino sneds the sound signal
  Serial.begin(9600); // serial monitor for debugging
}

void loop() {
  for (int i = 0; i < 3; i++) { //looping over the 3 sensors to reasd their analog value
    int value = analogRead(photoPins[i]);
    bool tapped = value < threshold; //comparing the value captured by the sensor and the defined threshold
    if (tapped && !prevPhoto[i]) { //checking for tap in the current state compared to prev
      if (i == 0) tone(piezzoPin, 440, 200); // translates to A0
      if (i == 1) tone(piezzoPin, 523, 200); // translates to A1
      if (i == 2) tone(piezzoPin, 659, 200); // translates to A2
    }
    prevPhoto[i] = tapped; //MAKING SURE TO NOTE it as tapped to have a singular tap rather than looping

    Serial.print(value); //serial print
    Serial.print(",");
  }

  bool pressed = digitalRead(buttonPin) == LOW; //setting the reading of the button to low meaning the button is pressed
  if (pressed && !prevButton) { //when the button is pressed state changes from not pressed(false) to presssed(true)
    buttonState = !buttonState;
    if (buttonState) tone(piezzoPin, 784);// if toggled on play a continuoue G5 tone
    else noTone(piezzoPin); //otherwise stop the buzzer
  }
  prevButton = pressed;

  Serial.println(pressed ? "1" : "0"); //for monitoring purposes

  delay(50);//short delay
}

Disclaimer: Some AI/ChatGPT was used to help with debugging and allowing multiple elements to work cohesively.

More Specifically:

Schematic:

Demo:

IMG_8360

Future Improvements:

As for the future improvements, one main thing we wanted to capture in this project is being to overlap the sounds, but since we were working with one piezo speaker, we were not able to do that. To address this we aim to learn more about how we can maybe start playing the sounds from our laptops instead of the physical speaker we connect to the Arduino. Other improvements could be exploring how we can incorporate different instrument sounds maybe and create an orchestra like instrument.

Reading Reflection:

Reading A Brief Rant on the Future of Interaction Design really made me rethink how we use technology and what we’ve lost in the process. The author points out that what we often label as “futuristic” design like touchscreens and flat device isn’t really that visionary or futurisitc. It’s actually very far from how we connect with the world. When he describes our current technology as “Pictures Under Glass,” it clicked for me how minimal that kind of interaction feels. We’re constantly sliding our fingers across flat screens, but we’ve given up the physical feedback that makes using our hands so intuitive and satisfying. I never thought about how much information we get through touch until he brought up examples like turning the pages of a book or feeling the weight of a glass of water.

What stood out most to me is his idea that our hands and really, our whole bodies are tools for understanding and shaping the world. Technology should amplify that, not suppress it. I realized how much design today caters to convenience and simplicity, but in doing so, it often strips away depth and engagement. His point about how touchscreens make us “finger-blind” hit hard—it’s true that we spend so much time tapping and swiping that we forget what it feels like to truly handle something.

Bret Victor’s A Brief Rant on the Future of Interaction Design argues that most futuristic designs, like touchscreens and “smart” glass devices, aren’t really futuristic. They still limit how humans can use their bodies. He points out that we interact with the world using our hands, senses, and movement, yet technology reduces all that to swiping and tapping. He calls this “Pictures Under Glass,” where we just touch flat screens instead of truly feeling or manipulating things.

In the follow-up, Victor explains that he wasn’t trying to give solutions but to spark awareness. He doesn’t hate touchscreens, he just wants people to imagine beyond them. He warns that if we keep improving only on what already exists, like adding small features to tablets, we’ll miss the chance to design something that fully connects with our physical abilities. True interaction design, he says, should use our hands’ full potential, our sense of touch, and our natural way of exploring and learning through movement.

What stood out to me most is how Victor connects design to human capability. It made me realize how much of what we call “interaction” today actually leaves our bodies out. I immediately thought about how different it feels to press a real piano key or strike a drum versus tapping a flat screen. When I play piano, I’m not just using my fingers, I’m using my arms, posture, timing, and even breath. There’s weight, resistance, and texture. You feel the sound before you even hear it. That’s something a touchscreen can’t replicate. It’s the same in sports, when you shoot a basketball, your body memorizes the angle, force, and balance, your muscles learn the rhythm. Victor’s idea reminded me that our body is a part of thinking and learning, not separate from it.

I also really liked how he said that tools should amplify human ability, not narrow it. Imagine if technology worked like that, instead of us adapting to it, it adapts to how we move and feel. A “future” instrument, for example, could let you physically mold sound with your hands, or a learning app could respond to your gestures, rhythm, or even posture, not just clicks. Victor’s message isn’t just about design, it’s about reimagining creativity, learning, and expression in a more human way. It’s like he’s saying, the real future of technology isn’t in shinier screens, it’s in rediscovering how alive and capable we already are.

Our Concept:

Our project drew inspiration from last week’s readings on human-computer interaction, particularly the ways in which technology can respond to subtle human behaviors. We explored how interactive systems often mediate our engagement with the environment and even with ourselves, creating experiences that feel responsive, social, or even playful.

With this perspective, we asked ourselves: what if an instrument didn’t just make sound, but responded directly to human behavior? Instead of rewarding interaction, it could intervene. Instead of passive engagement, it could create a performative, almost social response.

From this idea, the Diet Drum emerged — a device that reacts whenever someone reaches for a snack. The system is both humorous and relatable, externalizing the human struggle of self-control. When a hand approaches the snack bowl, a servo-powered drumstick strikes, accompanied by a short melody from a passive buzzer. The result is a playful, judgmental interaction that transforms a familiar, internal tension into an amusing and performative experience.

How It Works

• Photoresistor (LDR): Detects hand movements by monitoring changes in light. As a hand blocks the sensor, the reading drops.
• Servo motor: Moves a drumstick to perform a percussive strike, physically reinforcing the “warning” aspect of the interaction.
• Passive buzzer: Plays a short melody as a playful, auditory cue.

Arduino Uno: Continuously monitors the sensor and triggers both motion and sound.

When the LDR senses that a hand has blocked the light, the Arduino makes the servo play the melody and hit the drum. This creates a clear, immediate connection between what a person does and how the system responds, showing ideas from our readings about how devices can react to gestures and sensor input.

Video Demonstration

assignment10

Challenges

Throughout development, we encountered several challenges that required both technical problem-solving and design fixing:

• System reliability: While the setup initially worked smoothly, leaving it for some time caused it to fail. Figuring out the problem took us some time because we didn’t know what went wrong and whether it was the setup or the code. So we had to partially rebuild and retune the system to restore functionality.
• Mechanical stability: Keeping the drumstick steady during strikes was more difficult than anticipated. Any slight movement or misalignment affected the accuracy and consistency of the strikes, requiring several adjustments.
• Audio timing: The melody initially played too long, delaying servo motion and disrupting the intended interaction. Shortening the audio ensured that the strike and sound remained synchronized, preserving the playful effect.

• We used AI, to help with some code difficulties we had, to fit with our original idea.

Code Highlights

One part of the code we’re especially proud of is how the sensor input is mapped to the servo’s movement.

float d = constrain(drop, MIN_DROP, MAX_DROP);
float k = (d - MIN_DROP) / float(MAX_DROP - MIN_DROP);
int hitAngle = SERVO_HIT_MIN + int((SERVO_HIT_MAX - SERVO_HIT_MIN) * k);
unsigned long downMs = STRIKE_DOWN_MS_MAX - (unsigned long)((STRIKE_DOWN_MS_MAX - STRIKE_DOWN_MS_MIN) * k);

strikeOnce(hitAngle, downMs);

This makes the drumstick respond based on how close the hand is, so each action feels deliberate rather than just an on/off hit. It lets the system capture subtle gestures, supporting our goal of reflecting nuanced human behavior.

Future Improvements

Looking forward, we see several ways to expand and refine the Diet Drum:

• Adaptive audio: Varying the melody or warning tone based on how close the hand is could enhance the playfulness and expressiveness.
• Mechanical refinement: Improving the stability of the drumstick and optimizing servo speed could create smoother strikes and more consistent feedback.
• Compact design: Reducing the size of the device for easier placement would make it more practical for everyday use.
• Visual cues: Adding optional LEDs or visual signals could enhance the  feedback, making the system even more engaging.

Github Link:

https://github.com/deemaalzoubi/Intro-to-IM/blob/b321f2a0c4ebf566082f1ca0e0067e33c098537f/assignment10.ino

https://github.com/deemaalzoubi/Intro-to-IM/blob/b321f2a0c4ebf566082f1ca0e0067e33c098537f/pitches.h

Concept

Mini Piano

Given that we had to make a musical instrument, we were inspired by a project we found in YouTube of what seemed like a piano. From this, we aimed to make a smaller scale of this project following the requirements for the assignment. The circuit consists of one piezo speaker, a potentiometer as an analog sensor, and a three buttons as digital sensors.

Schematic

Circuit Diagram

Figure 2 ( Circuit design with code and simulation on “Magnificent Jaiks” by Abdelrahman

Final Results

VIDEO

Arduino code

One aspect of this project we were  proud of is the octave multiplier implementation. Instead of having fixed notes, Abdelrahman used the potentiometer to create a continuous pitch control that multiplies the base frequencies by a factor between 0.5x and 2.0x.

float octaveMultiplier = map(potValue, 0, 1023, 50, 200) / 100.0;

This line of code transforms a basic three-note instrument into something much more expressive and fun to play with. Users can play the same melody in different registers, which makes the instrument feel more like a real musical tool rather than just a tech demo.

else if (digitalRead(button2) == LOW) {
  int freq = notes[1] * octaveMultiplier;
  tone(buzzerPin, freq);
  Serial.print("Playing ");
  Serial.print(noteNames[1]);
  Serial.print(" at ");
  Serial.print(freq);
  Serial.println(" Hz");
}
else if (digitalRead(button3) == LOW) {
  int freq = notes[2] * octaveMultiplier;
  tone(buzzerPin, freq);
  Serial.print("Playing ");
  Serial.print(noteNames[2]);
  Serial.print(" at ");
  Serial.print(freq);
  Serial.println(" Hz");
}

I also thought this snippet was interesting since it captures how the notes are played and how the frequencies adjust when the buttons are played and the potentiometer is twisted.

Github

https://github.com/imh9299-sudo/Intro-to-IM.git

Challenges and Further Improvements

Despite the complexity of the circuit, Abdelrahman successfully managed to produce a design in Magnificent Jaiks which I managed to follow without any issues. After arranging the jumper wires and all the other pieces, the final result was as we aimed for. One of the biggest challenges we faced was finding a way to divide the work as a result of the distance. Nevertheless, we managed to make a plan after meeting on zoom, and finished our circuit on time. For future projects, one thing I would like to improve on is developing an instrument of this kind with more buttons in order to have a larger version of the mini piano done for this assignment.
