Week 3 – Digital Art – Introduction to Interactive Media

Unlike week 2, which lacked user interaction, I wanted this project to focus on having user interaction project an artwork. However, at the same time I didnt want user to think to much in producing the result. So I arrived at the conclusion of making the user press random keys to produce a sort of a simple artwork.

The artwork I was inspired by is from our video.

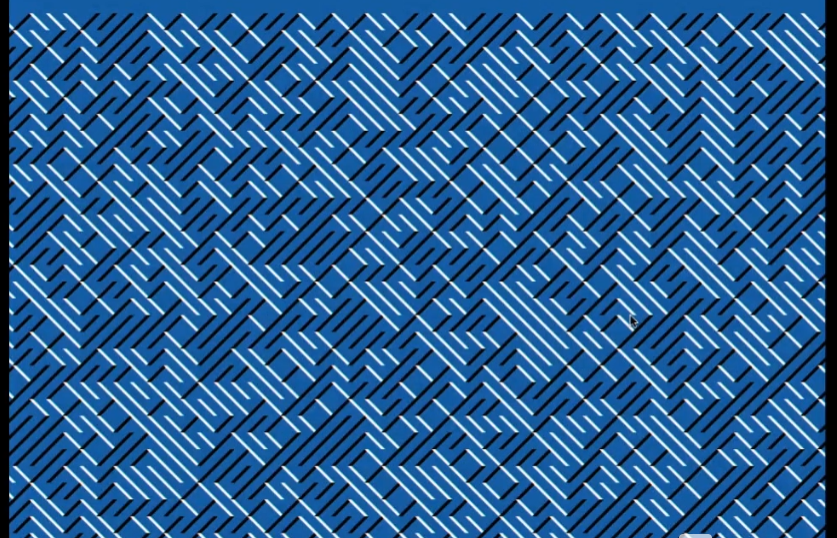

I noticed that if I have grids of the canvas with each grid having a random diagonal value, it can produce something like this. Of course, the same direction meant the same color.

The random colors are stored in an array that looks like this:

this.palettes = [
      ["#fefae0", "#606c38", "#bc6c25"],
      ["#0f0f0f", "#e63946", "#f1faee"],
      ["#f1f1f1", "#118ab2", "#ef476f"],
      ["#22223b", "#f2e9e4", "#c9ada7"],
      ["#faf3dd", "#2a9d8f", "#e76f51"]
    ];

The first is for the background of the canvas, the second one is for the left diagonal and the third one is for the right diagonal. I did no mention how to change the colors randomly. Feel free to explore and find out how to change colors. Pressing randomly keys might help.

placeRandomDiagonal() {
    //wait if full
    if (this.gridFull()) {
      return;
    }
    //get randomindex to palce the diagonal line
    const randIndex = floor(random(this.emptyIndices.length));
    const i = this.emptyIndices.splice(randIndex, 1)[0];

    //get random direction 1 is left 2 is right diagonal
    const dir = random([1, 2]);
    //get random strokeWeight
    const w = random(1, 5);
    this.cells[i] = { dir, w };
    //call reset to check if its full
    this.scheduleAutoResetIfFull();
  }

This is the code that I wanted to share. This is the place Random Diagonal function, It first gets the random Index to palce the diagonal lines and chooses the random direction and random stroke weight. At the end the of the function it calls another function which simply checks if the grid is full. If it is, it calls the reset function.

//grid cells are stored in 1D array while canvas is 2D so this is to conver linear index to 2D position
//const x is column number
const x = (i % this.cols) * this.cellSize;
//row number
const y = floor(i / this.cols) * this.cellSize;

//each are multiplied by cell size to get pixel coordinates
//ex cellsize is 20, col is 5 anat i =7. that means 7%5 = 2 column 2 which is 40, row is at 7/5 = 1 at 20, so index 7 maps to position 40,20

The hardest part about this code was the transition of 1D arrays to 2D canvas. Since the information that stores the grid cells are in 1D array, I had to find a method to map each index to a coordinate in the grid. This is done here, the specifics are explained in the comments.

For future Improvements, I think that making mouse clicks have another action on the artwork. Maybe changing the diagonal lines can make the artwork more interactive. Rather than diagonal, it can try different angles with each mouse click.
